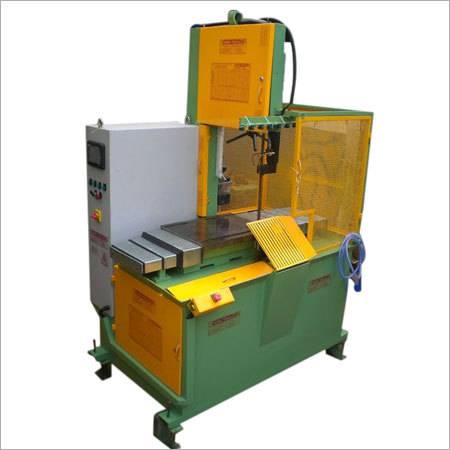

CNC Vertical Band Saw Machine

CNC Vertical Band Saw Machine
CNC Vertical Band Saw Machine
Product Code : VCM 450 (CNC)
Brand Name : TANNU TOOLS
Product Description

vertical band saw machine model vcm 450(CNC)

  • Well Design Vertical Band Saw Machine for trouble free Higher Production.
  • High Efficiency Gear Box.
  • Adjustable Heavy Duty Movable Blade Guide.
  • Well Equipped Electrical Control Panel PLC based (Mitsubishi Q Series)
  • Servo motor and drive(Mitsubishi Q Series)
  • Chip brushing of Blade and Chip filtering system
  • Fully closed machine with small sheet shield(above on cutting area) for more safety
  • Top mount tube light for proper lighting at workspace
  • Facility for interfacing with ROBO (Provided in PLC)
  • Two button starter facility
  • Standard work station height for easy and better operation.
  • Spindle design as well as dynamic balancing

Technical Data of Machine:

Machine Dimension

Length

1500 MM

Width

1050 MM

Height

2200 MM

Machine Electrical Equipment

Supply Voltage

~3 x 415V, 50Hz, TN-C-S

Protection Degree

IP 54

Driving Engine of the Band Saw and coolant

Type

~3 x 415V, 50Hz

Out Put (Drive)

3 HP

Saw Band Dimension

4400(Length) MM X 34 (Width) MM X 1.1(Thickness) MM

Work Station Dimension

Length x Width

450mm x 450mm

Height from floor

935mm
