Semi Automatic Band Saw Machine

Semi Automatic Band Saw Machine
Semi Automatic Band Saw Machine
Product Code : MODEL HSA 250(DC)
Brand Name : TANNU TOOLS
Product Description

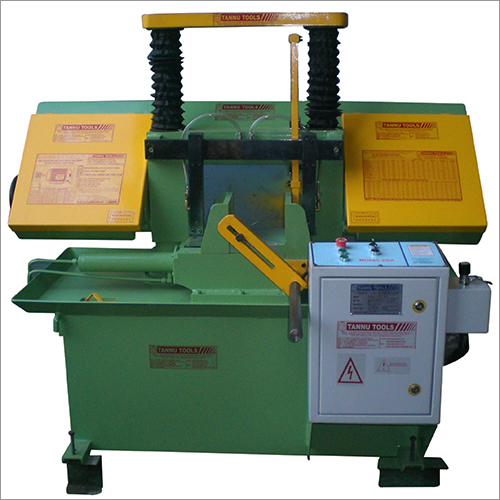

SEMI AUTOMATIC BAND SAW MACHINE MODEL HSA 250(DC)

  • Well Design Band Saw Machine for trouble free Higher Production.
  • High Efficiency Gear Box.
  • Double Acting Hydraulic Cylinder for main vice.
  • Step Pulley with V-Belts.
  • Infinitely Variable Feed Control Valve for setting the cutting rate.
  • Adjustable Heavy Duty Movable Blade Guide.
  • Well Equipped Electrical Control Panel.
  • Well Equipped Hydraulic Power Pack.
  • Automatic Machine off in case of Power Cut.
  • Rolling Conveyor (7 feet )

Technical Data of Machine:

Machine Dimension

Length

1150 MM

Width

1500 MM

Height

1450 MM

Machine Electrical Equipment

Supply Voltage

~3 x 415V, 50Hz, TN-C-S

Protection Degree

IP 54

Driving Engine of the Band Saw

Type

~3 x 415V, 50Hz

Out Put

2 HP

Hydraulic and Coolant Motor

Hydraulic Motor

1 HP

Coolant Pump

0.25 Hp

Saw Band Dimension

3760(Length) MM X 27(Width) MM X 0.9(Thickness) MM

Cutting Capacity

ROUND SOLID

ROUND HOLLOW

SQUARE/FLAT

HEX SECTION

250 MM

250 MM

250 MM X 250 MM

250 MM
